How to resize a stained glass pattern and print it full size
To resize a stained glass pattern, scale the drawing to the opening, keep its lines at the width of your came or foil, and check that every piece can still be cut at the new size. Then print it at 100% on as many sheets as it takes, and measure a known length on the print before you cut.
- Pieces
- 107
- Printed at 100%
- 16 sheets of A4, 4 × 4
- Can I cut this?
- No problems at this size
01
Why a photocopier gets it wrong
Enlarge a printed pattern on a copier and everything grows, the lines with it. A pattern drawn with 1/4 inch leads, doubled, has 1/2 inch lines, and cut on the inside of those, every piece comes out too small. Shrink it and the lines get thin while your came stays the same, so every piece comes out too big.
The width of a line is not part of the picture. It is the width of the came or the foil, and it is the same at any size. Resize the drawing, and draw its lines at their real width.
02
Resize the drawing to the opening
Measure the opening and decide the panel's outside size. Resize the pattern to that width and height.
If the opening's proportions differ from the pattern's, the drawing stretches more one way than the other and a circle becomes an oval. Where something has to stay round, keep the proportions and make up the difference in the border.
03
Check the pieces at the new size
Shrink a pattern and its narrow pieces get narrower; enlarge it and its big pieces get bigger. At half size a piece 12 mm wide becomes 6 mm, under the 8 mm the Studio warns at. At double size a piece 300 mm across becomes 600 mm, over the 500 mm it warns at in lead came.
Drag the size above and watch the warnings come and go. Split a piece that grew too big with a lead; join or simplify pieces that grew too small.
04
Print it at 100%
Print the cutting pattern at 100%, Actual size in the print dialog, never Fit to page. On a home printer it takes several sheets: the Studio tiles the pattern across A4 or Letter, each sheet overlapping the next by 12 mm, with marks at the corners to line them up and each sheet's row and column printed on it.
Trim the sheets, lay each over the next by the marks and tape them. Or have a copy shop print the PDF on one large sheet, at 100%.
05
Check it with a ruler

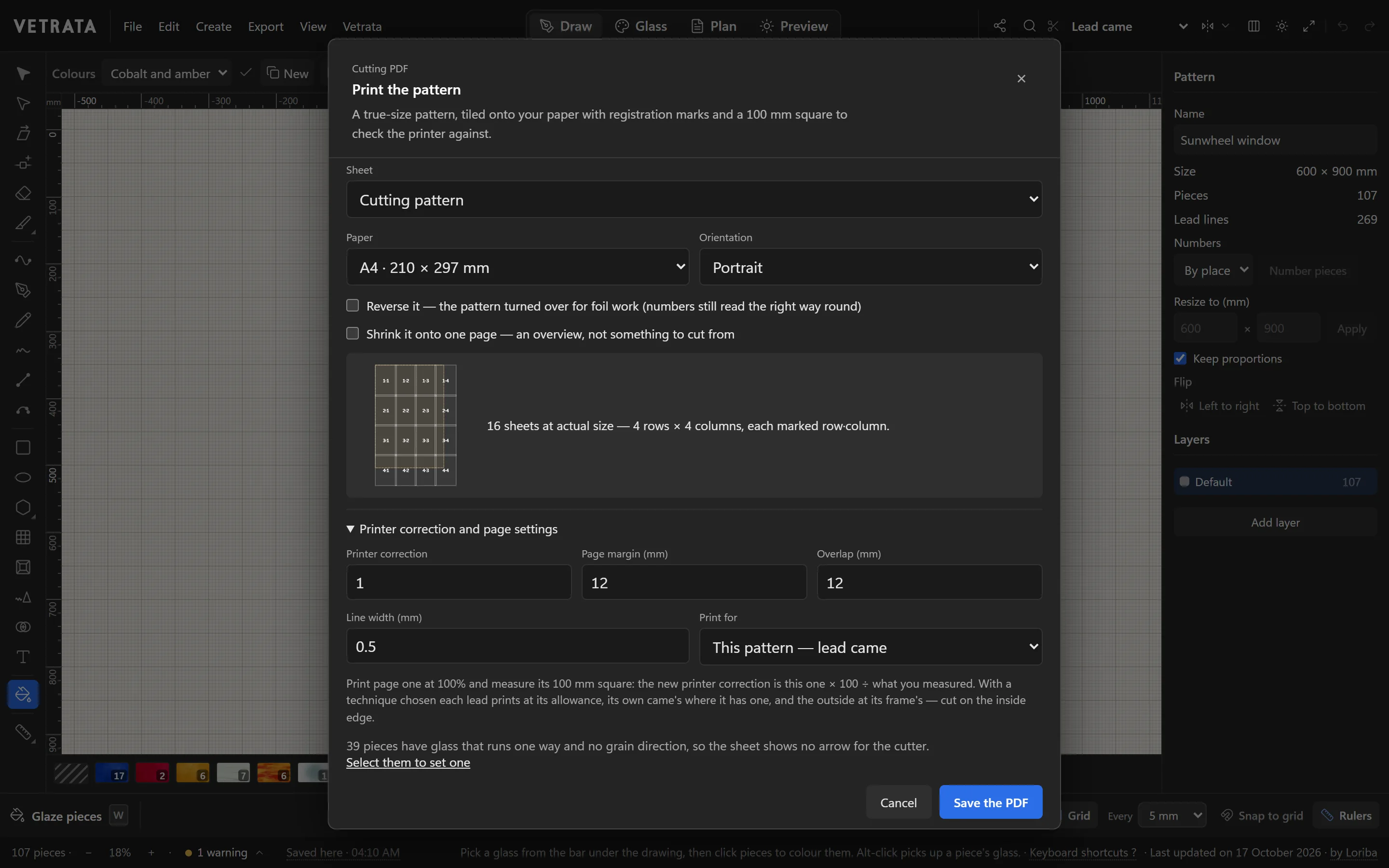

A printer can print a little large or small. Measure the 100 mm square on page one: if it measures 99 mm, every piece is 1% small, and across a 900 mm panel that is 9 mm of glass.
Correct the printer once, by what you measured, and every pattern after prints true.
